H13/1.2344 Hot Work Die Tool Steel
H13 steel is a type of hot work tool steel that is commonly used in the manufacturing industry for applications such as forging dies, extrusion dies, and punches. Its chemical composition includes elements such as chromium, molybdenum, and vanadium, which gives it excellent resistance to thermal shock and wear under high temperature conditions. H13 steel also has good toughness and machinability, making it a popular choice for tooling in the metalworking industry.
SPECIFICATION
| SIMILAR STEEL GRADES | ||||||
| National Standard | Manufacturer Standard | |||||
| GB | AISI | DIN | JIS | Erasteel | Bohler | Hitachi |
| 4Cr5MoSiV1 | H13 | 1.2344 | SKD61 | - | W302 ISODISC/W302/ Orvar 2M/Orvar Supreme/Dievar | DAC/FDAC/DAC Magic |
|
Chemical composition % |
||||||||||
| C | Si | Mn | P ≤ | S ≤ | Cr | W | Mo | V | Co | etc. |
| 0.39 | 1.10 | 0.30 | 0.028 | 0.02 | 5.10 | ≤0.30 | 1.45 | 0.90 | - |
|
|
Characteristics |
|||
| Annealed Hardness HB | Heat Treatment Temperature ℃ | Tampering HardnessHRC | |
| Hardening | Tempering | ||
| 235 | 1020 | 530-560 | 47-54 |
Applications
Aluminium Extrusion Die
Aluminium Copper forging Die
Aluminum die casting
Pressing mold
Plastic thin wall mold

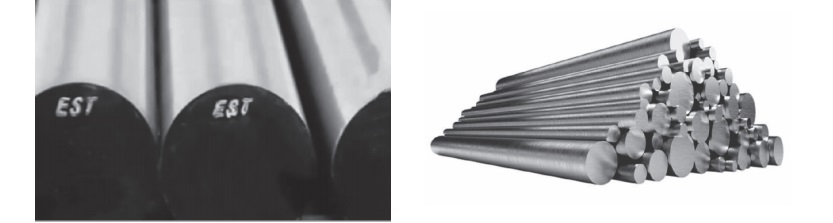

Supply Form
|
|
